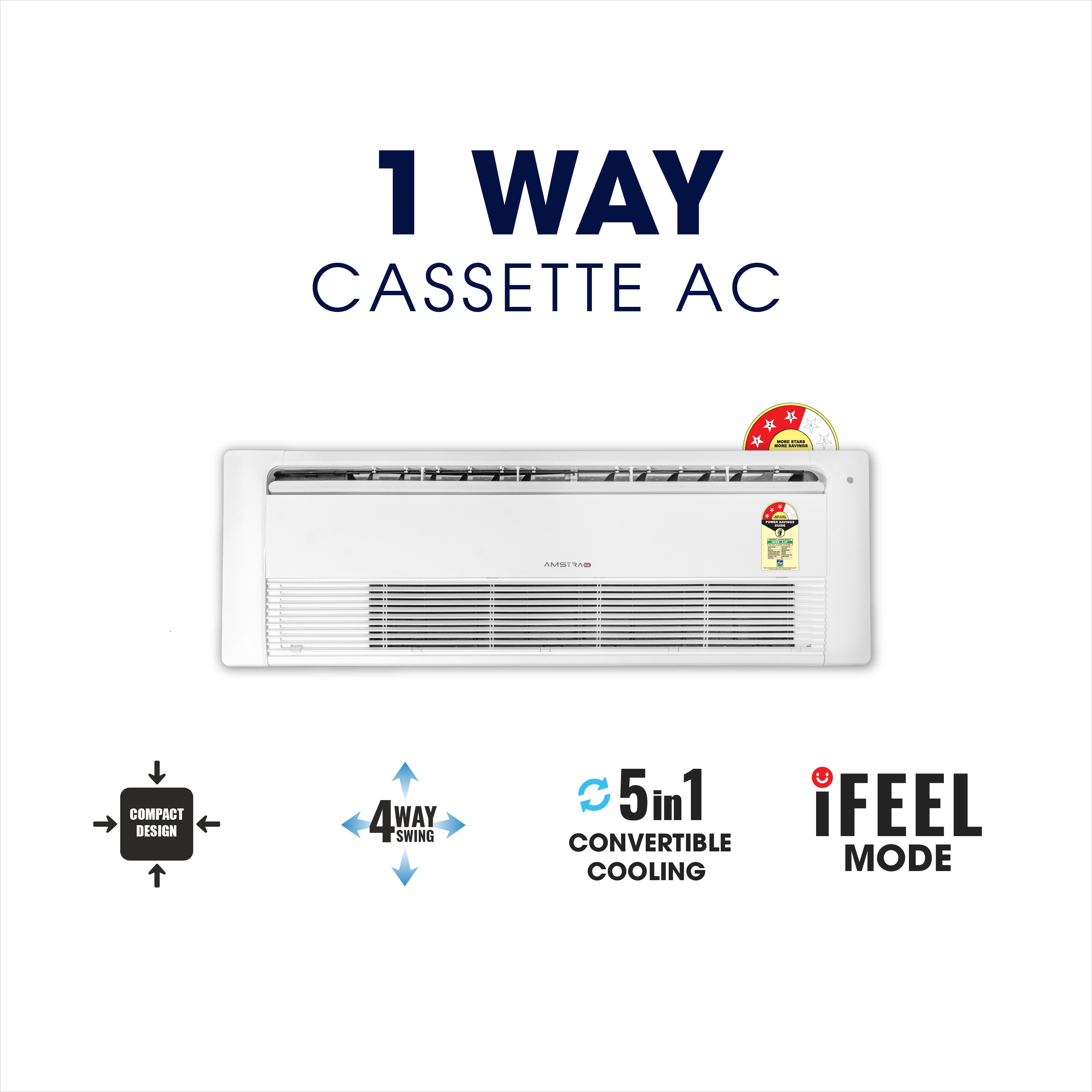

Amstrad One Way Cassette 2.0 Ton 3 Star Air Conditioner – AMS1WC24iA (2026 Star Rating)

Technical Specifications TECHNICAL SPECIFICATIONS OF AMSTRAD ONE-WAY CASSETTE AIR CONDITIONER MODEL NUMBER AMS1WC24iA TONNAGE 2.0T TYPE OF AC Inverter POWER SUPPLY V-Ph-Hz 230V,1Ph, 50Hz CAPACITY (RATED) – MAX / FULL / MIN COOLING W 7700 / 7000 / 3500 POWER INPUT (RATED) – FULL / HALF COOLING W 2150 / 705 ANNUAL POWER CONSUMPTION kWh 1259.81 ISEER W 4.30 STAR RATING 3 Star MODES Cool, Dry, Fan, Auto CONTROLLER Remote Control INDOOR UNIT AIRFLOW RATE (HI/MI/LO) m³/min 15.7 / 14.9 / 13.9 AIRFLOW RATE f³/min (CFM) 554 / 525 / 490 FAN MOTOR Type BLDC SOUND LEVEL dB(A) 53 MACHINE DIMENSIONS (L*W*H) 1180 x 450 x 132 MACHINE PACKING DIMENSIONS (L*W*H) 1335 x 440 x 385 PANEL DIMENSIONS (L*W*H) 1420 x 500 x 34 PANEL PACKING DIMENSIONS (L*W*H) 1440 x 540 x 240 PIPING CONNECTION (OUTER DIA.) Liquid mm (inch) 9.52 Gas mm (inch) 12 Drain Pipe mm 25 INDOOR MACHINE WEIGHT (NET/GROSS) (Kg) 15.9 / 18.8 INDOOR PANEL WEIGHT (NET/GROSS) (Kg) 3.6 / 6.1 OUTDOOR UNIT SIZE 26″ COMPRESSOR TYPE Rotary REFRIGERANT R32 REFRIGERANT CHARGE VOLUME (Kg) 1.1 HEAT EXCHANGER Type (Coating) Bare FAN MOTOR Type BLDC SOUND LEVEL dB(A) 66 DIMENSIONS (L*W*H) 910 x 320 x 670 PACKING DIMENSIONS (L*W*H) 1037 x 458 x 761 MACHINE WEIGHT (NET/GROSS) (Kg) 40.4 / 46.0 MAX. INTERUNIT PIPING LENGTH (m) 10 Meter MAX. INSTALLATION LEVEL DIFFERENCE (m) 5 Meter PIPING CONNECTION (OUTER DIA.) Liquid mm (inch) 9.52(3/8) Gas mm (inch) 12.57(1/2) PIPING LENGTH Min / Max m 5 meter / 15 meter OPERATING AMBIENT TEMP OUTDOOR COOLING (MIN ~ MAX) °CDB 20⁰C ~ 55⁰C NOTE: The images shown are for graphical representation only. Amstrad Air Conditioners are designed to work in ambient temperature upto 52 degree centigrade There is a continual improvement process for the better performance, changes in design and specifications can be made without prior notice. Noise level to be experienced from the distance of one meter from air conditioner. All tests are carried at standard conditions.
