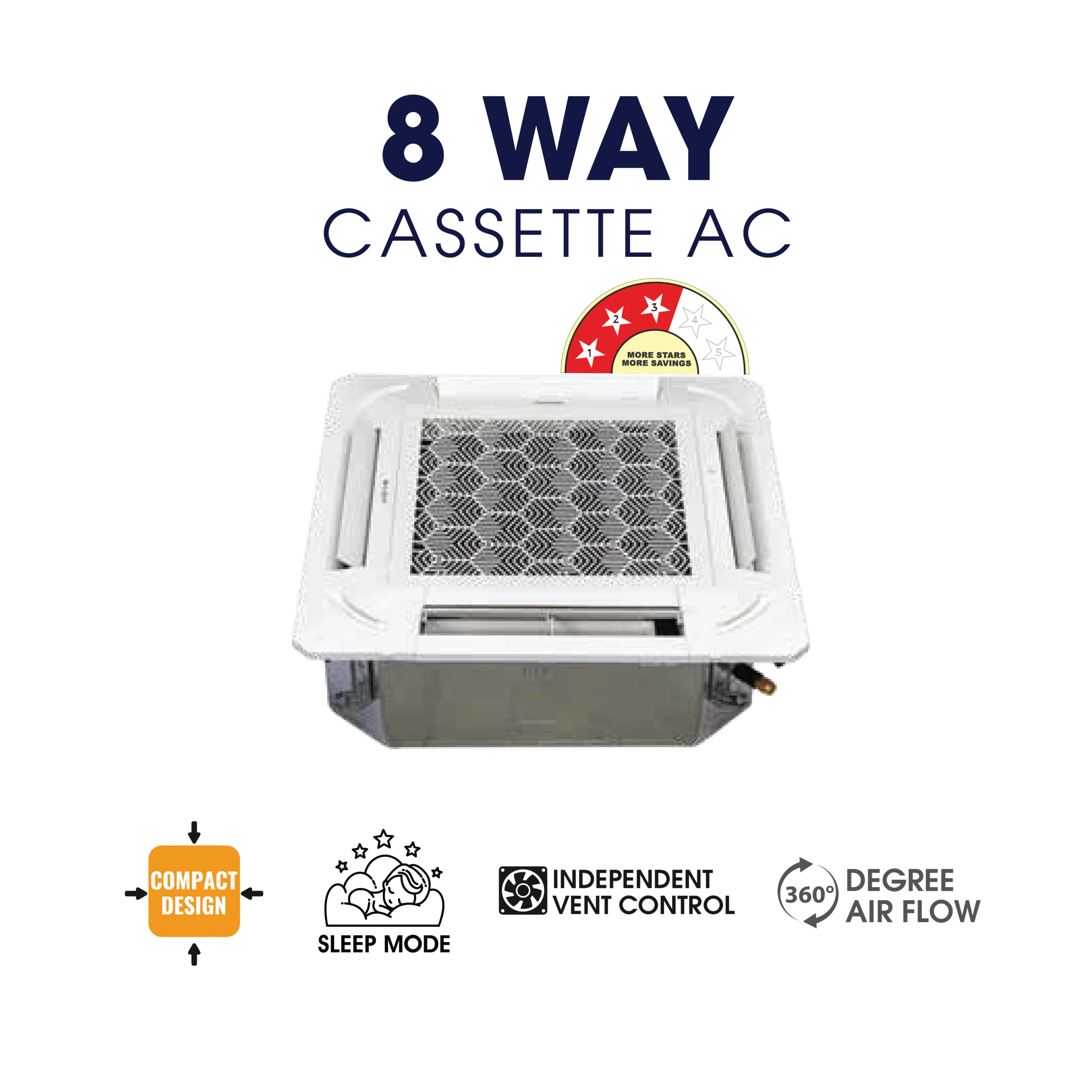

Amstrad 8 Way Cassette 3 Ton 3 Star Air Conditioner – AMCi363A (2026 Star Rating)

Technical Specifications Model Number AMCi363A Type of AC Inverter Power Supply Ph-V-Hz 230V,1Ph, 50HZ Cooling (T1） Capacity Ton 3.0T Full Load / Half Load Capacity (W) 10600 / 5300 Btu/h 36169 / 18084 Max Cooling Capacity (W) 11024 Input Full Load / Half Load Power (W) 3400 / 1370 Rated Current Full Load / Half Load (A) 16.0 / 8.0 ISEER W/W 3.75 Annual Power Consumption Kw/h 2186.30 Star Rating 3 e.Tube Outside Dia.and Type mm Φ7, Innergroove Tube g.Number of Circuits 6-IN & 6-OUT (IDU), 4-IN & 1-OUT (ODU) Indoor Air Flow (Hi/Mi/Lo) m3/h 2180 (Turbo) Sound Level (Sound Pressure) dB(A) 52/50/48 Throttle Type Outdooor (Throttle Valve) Indoor Unit Dimension (W*D*H) mm 845 x 845 x 290 Packing (W*D*H) mm 950 x 950 x 373 Dimension (WxDxH) (Panel) mm 950 x 950 x 52 Packing (WxDxH) (Panel) mm 1010 x 1034 x 118 Net/Gross Weight Kg 26.0 / 32.0 Net/Gross Weight (Panel) kg 5.5 / 8.0 Outdoor Noise Level dB(A) 60 Throttle Type Outdooor (Throttle Valve) Outdoor Unit Dimension (W*D*H) mm 850 x 310 x 684 Packing (W*D*H) mm 1032 x 450 x 755 Net/Gross Weight Kg 42.0 / 47.0 Refrigerant Type Type gm R32 / 1360 Charged Volume Kg 1.36 Design Pressure MPa 4.28 / 1.18 Drainage Water Pipe Diameter mm ODΦ26mm Refrigerant Piping Liquid Side/ Gas Side mm(inch) 9.52mm(3/8in) / 15.88mm(5/8in) Controller Remote Control Operation Temperature ℃ 48 Max Room Temperature Indoor (Cooling) ℃ 16~30 Outdoor (Cooling) ℃ 21~48 NOTE: The images shown are for graphical representation only. Amstrad Air Conditioners are designed to work in ambient temperature upto 52 degree centigrade There is a continual improvement process for the better performance, changes in design and specifications can be made without prior notice. Noise level to be experienced from the distance of one meter from air conditioner. All tests are carried at standard conditions.
