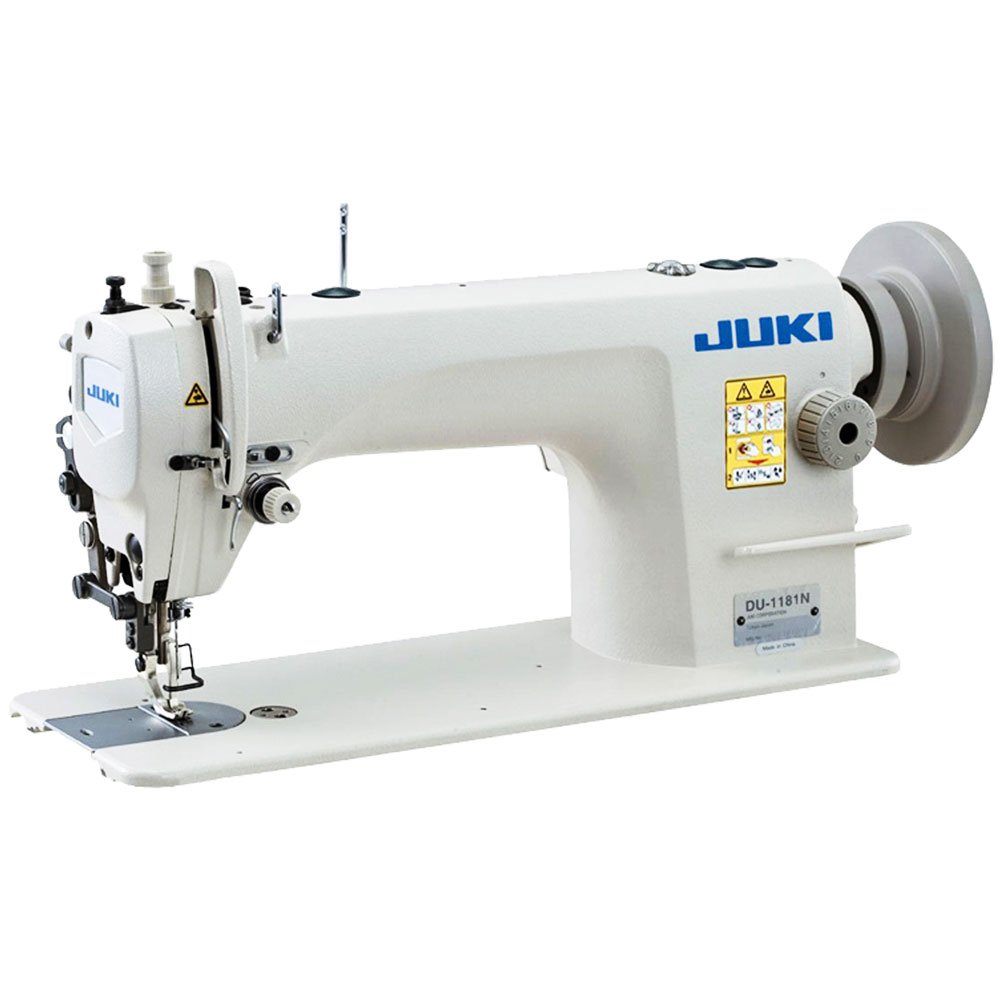

JUKI DU-1181N 1-needle, Top and Bottom-feed, Lockstitch Machine with Double-capacity Hook

Description Specification Reviews Juki DU-1181N 1-Needle, Top and Bottom-feed, Lockstitch Machine with Double-capacity Hook With its strong top and bottom feed mechanism, the machine insures the smooth feeding of hard-to-feed materials or multilayered sections of materials to achieve consistent seam quality that is free from irregular stitch pitches. The automatic lubricating mechanism dramatically improves maintainability of the machine. The lift of the presser foot, by the knee lifter, is as high as 15mm so as to support processes which require a higher lift of the presser foot such as piping and tape attaching. The lift of the presser foot, by the knee lifter, is as high as 15mm so as to support processes which require a higher lift of the presser foot such as piping and tape attaching. With its stitch length being as large as 9mm, the machine is applicable to a broader range of sewing processes. The machine comes with a horizontal-axis double-capacity hook, not only to decrease the frequency of bobbin thread changing, but also to enable sewing work with increased efficiency. A pump-unit type automatic lubricating mechanism dramatically improves maintainability. The oil amount in the face plate and hook is adjustable. The top feed mechanism employs a grease tank and oil wick lubrication mechanism. The machine head is designed to achieve optimum balance, thereby reducing vibration and noise. The machine affords the operator a comfortable working environment. The stitch can be adjusted in both the normal and reverse directions The height and inclination of the feed dog can be adjusted. The amount of the alternating vertical movement of the walking foot and presser foot is adjustable in a range from 2mm to 5mm according to the height of a multi-layered section of material. The horizontal feed cam, top and bottom feed cam and top feed cam can be adjusted after opening the rubber caps (three caps) on top of the machine head. Specifications Max. sewing speed 2,000 stitches per minute Max. stitch length 9mm (forward/backward) Needle bar stroke 36.5mm Lift of the presser foot by hand 5.5mm Lift of the presser foot by knee 15mm Thread take-up Link type Alternating vertical movement 2～5mm Hook Horizontal-axis full-rotary double-capacity hook Needle (at the time of delivery) DP×17 (#21) #14～#23＊ Thread #40~#8, B33~B92, Nm=90/3~30/3 Pitch changing method By dial Knee-lifter mechanism Built on the machine head Lubrication Automatic Lubricating oil JUKI MACHINE OIL No.7 (equivalent to ISO VG7) Distance from needle to machine arm 261mm Bed size 477mm × 178mm Weight of the machine head 31kg   SKU: JUKDU1181N Categories: Garment Sewing, Industrial, Upholstery Sewing
